DnpGui Class Reference

The visual appearance of a DnpData. More...

#include <featuregui.h>

Inheritance diagram for DnpGui:

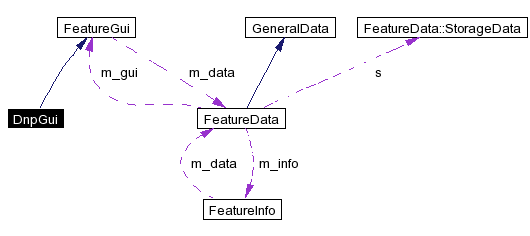

[legend]Collaboration diagram for DnpGui:

[legend]List of all members.

Public Member Functions
	DnpGui (FeatureData *data)
void	paintMe (QPainter *p, TR_PIX x_pix, TR_PIX y_pix, TR_DNA x1_dna, TR_DNA x2_dna, double width, int height, int center)
DnpData *	dnpData ()

---

Detailed Description

The visual appearance of a DnpData.

Definition at line 66 of file featuregui.h.

---

Constructor & Destructor Documentation

DnpGui::DnpGui (  FeatureData *  data  )  [inline]

Definition at line 69 of file featuregui.h. : FeatureGui( data ) { // cerr << "in dnpgui ctor" << endl; }

---

Member Function Documentation

DnpData * DnpGui::dnpData (   )

Definition at line 104 of file featuregui.cpp. References FeatureGui::m_data. Referenced by paintMe(). { return dynamic_cast<DnpData *>( m_data ); }

void DnpGui::paintMe (  QPainter *  p, TR_PIX  x_pix, TR_PIX  y_pix, TR_DNA  x1_dna, TR_DNA  x2_dna, double  width, int  height, int  center )  [virtual]

Paints the visual appearance of a feature. Parameters: p  the QPainter to paint to x_pix  the pixel coordinate of the upper left corner of the rectangle where the feature should be painted y_pix  the pixel coordinate of the upper left corner of the rectangle where the feature should be painted x1_dna  the left most position that should be painted given as a dna coordinate relative the left side of the read. x2_dna  the right most position that should be painted given as a dna coordinate relative the left side of the read. Implements FeatureGui. Definition at line 63 of file featuregui.cpp. References dnpData(). { static QColor dnpcolors[] = { Qt::red.light(110), Qt::green.light(110), Qt::blue.light(110), Qt::cyan.light(110), Qt::magenta.light(110), Qt::yellow.light(110), Qt::darkRed.light(140), Qt::darkGreen.light(140), Qt::darkBlue.light(140), Qt::darkCyan.light(140), Qt::darkMagenta.light(140), Qt::darkYellow.light(140) }; static int num_colors = sizeof(dnpcolors)/sizeof(QColor); QString str; QBrush brush; brush.setStyle( Qt::SolidPattern ); // assert( dnpData()->get_dnpID() > -1 ); // brush.setColor( dnpcolors[ dnpData()->get_dnpID() % num_colors ] ); assert( dnpData()->get_dnp_type() > -1 ); brush.setColor( dnpcolors[ dnpData()->get_dnp_type() % num_colors ] ); long long int min_width(8); int used_width = max( min_width, static_cast<long long>((x2_dna - x1_dna + 1 )* width) ); // p->fillRect( x_pix, y_pix, (x2_dna - x1_dna + 1 )* width , height , brush) ; p->fillRect( x_pix, y_pix, used_width , height , brush) ; return; }

---

The documentation for this class was generated from the following files:

• featuregui.h
• featuregui.cpp

---
