DNPclass Class Reference

#include <trapperDNP.h>

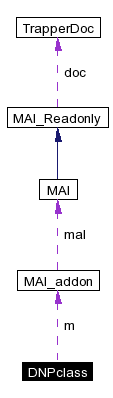

Collaboration diagram for DNPclass:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 DNPclass (MAl_addon *mal, int minqual, int d_min=3, double p_max=0.001)
 ~DNPclass ()

Private Member Functions

void look_for_corr (vector< char > &first_col, vector< char > &second_col, vector< int > &first_qual_col, vector< int > &second_qual_col, char cand_base_1, char cand_base_2, int &num_err_first, int &num_err_second, double &exp_err_first, double &exp_err_second, int &num_corr, double &expectation_val)
void find_DNP_candidate_positions ()
int column_is_candidate (int col)
void evaluate_DNP_candidate_positions ()
void set_DNPs (int col1, int col2, char DNPbase1, char DNPbase2, vector< int > &rownum_vec, int ID1, int ID2, char cons1, char cons2)
double poisson_probability (double lambda, int obs)
int find_DNP_base_candidates (int &a, int &t, int &c, int &g, int &gap, char seqbase, int &tot_seqbase, int &tot_others)
void pick_base_row_and_qual_columns (int firstDNPindex, int secondDNPindex, vector< char > &firstDNPvec, vector< char > &secondDNPvec, vector< int > &first_qual_vec, vector< int > &second_qual_vec, vector< int > &rownum_vec)

Private Attributes

MAl_addon * m
int num_found
int num_pos
vector< int > confirmed_DNP_pos
vector< double > quality2error
map< char, char > base_trans
int num_candidates
int qualmin
int Dmin
double p_tot_max
vector< int > cand_vec
vector< char > cand_bases
vector< char > cons_bases

Detailed Description

Definition at line 8 of file trapperDNP.h.

Constructor & Destructor Documentation

DNPclass::DNPclass (  MAl_addon *  mal,
int  minqual,
int  d_min = 3,
double  p_max = 0.001
)


Definition at line 8 of file trapperDNP.cc.

References base_trans, evaluate_DNP_candidate_positions(), find_DNP_candidate_positions(), num_found, num_pos, and quality2error.

00008                                                                          :
00009   m(mal), num_candidates(0), qualmin(minqual), Dmin(d_min), p_tot_max(p_max)
00010   // {{{
00011
00012 {
00013
00014   // Fill in the 'quality2error vector'
00015
00016   for( int q = 0; q < 100; q++ ) {
00017
00018     quality2error.push_back( std::pow(10.0, -(double)q/10.0)  );
00019
00020   }
00021   base_trans['a'] = 'a';
00022   base_trans['A'] = 'a';
00023
00024   base_trans['t'] = 't';
00025   base_trans['T'] = 't';
00026
00027   base_trans['g'] = 'g';
00028   base_trans['G'] = 'g';
00029
00030   base_trans['c'] = 'c';
00031   base_trans['C'] = 'c';
00032
00033   base_trans['n'] = 'n';
00034   base_trans['N'] = 'n';
00035
00036   base_trans['x'] = 'x';
00037   base_trans['X'] = 'x';
00038
00039   base_trans['-'] = '-';
00040
00041   base_trans['*'] = '*';
00042
00043   cerr<<"Finding candidate positions...  ";
00044   find_DNP_candidate_positions();
00045   cerr<<"Done"<<endl;
00046   cerr<<"Evaluating candidates... ";
00047   evaluate_DNP_candidate_positions();
00048   cerr<<"Done"<<endl;
00049   cerr<<num_found<<" DNPs found at "<<num_pos<<" positions"<<endl;
00050 }

DNPclass::~DNPclass (   )


Definition at line 53 of file trapperDNP.cc.

00054      {{{
00055
00056 {
00057
00058 }

Member Function Documentation

int DNPclass::column_is_candidate (  int  col  )  [private]


Definition at line 86 of file trapperDNP.cc.

References base_trans, cand_bases, cons_bases, Dmin, MAl_addon::get_most_freq_base_on_col(), MAl_addon::get_num_bases_on_col(), and m.

Referenced by find_DNP_candidate_positions().

00087      {{{
00088
00089 {
00090   /*
00091      Definition of candidate base type:
00092
00093      ¤ Must be present in at least Dmin reads
00094      ¤ Can be present in at most half the number of reads on column
00095
00096      ¤ Extra: at present there can be only one candidate base type
00097      on a column. Without this constraint, a more involved approach
00098      has to be taken in order to identify candidate base types.
00099
00100   */
00101
00102   char cons = base_trans [ m->get_most_freq_base_on_col( col ) ];
00103   if ( cons != 'a' && cons != 'c' &&
00104        cons != 'g' && cons != 't'  ) return 0;
00105
00106
00107
00108   char base_arr[] = {'a', 'c', 'g', 't'/*, '-'*/};
00109   int cand_num(0);
00110   int cand_base = 'u';
00111   int cand_found(0);
00112
00113   for( int i = 0; i < 4; i++ ) {
00114     char base = base_trans [ base_arr[i] ];
00115     if ( base == cons /*|| base != m->get_entry( 0, col )*/ /*NOTA BENE*/) continue;
00116
00117     if ( m->get_num_bases_on_col(col, base) >= Dmin ) {
00118       if ( m->get_num_bases_on_col(col, base) > cand_num ) {
00119         cand_num = m->get_num_bases_on_col(col, base);
00120         cand_base = base;
00121         cand_found = 1;
00122       }
00123     }
00124   }
00125
00126
00127   if ( cand_found ) {
00128     cand_bases.push_back( cand_base );
00129     cons_bases.push_back( cons );
00130     return 1;
00131   }
00132   return 0;
00133
00134 }

void DNPclass::evaluate_DNP_candidate_positions (   )  [private]


Definition at line 138 of file trapperDNP.cc.

References cand_bases, cand_vec, confirmed_DNP_pos, cons_bases, Dmin, MAl_addon::get_max_col(), look_for_corr(), m, num_found, num_pos, pick_base_row_and_qual_columns(), poisson_probability(), and set_DNPs().

Referenced by DNPclass().

00140      {{{
00141
00142 {
00143   /*
00144     Tentative try: compare all candidate columns to each other
00145
00146   */
00147   num_found = 0;
00148   num_pos = 0;
00149
00150   assert( (int)confirmed_DNP_pos.size() == 0 );
00151   for( int i = 0; i < m->get_max_col(); i++ ) {
00152     confirmed_DNP_pos.push_back(0);
00153   }
00154
00155   vector<char> first_base_col, second_base_col;
00156   vector<int> first_qual_col, second_qual_col;
00157   vector<int> rownum_vec;
00158
00159
00160   for( int i = 0; i < (int)cand_vec.size() - 1; i++ ) {
00161     int proc = 100 * i / cand_vec.size();
00162 //     if ( proc % 5 == 0 )
00163 //       cerr<<proc<<" % checked"<<endl;
00164     for( int j = i+1; j < (int)cand_vec.size(); j++ ) {
00165
00166       pick_base_row_and_qual_columns(cand_vec[i], cand_vec[j], first_base_col,
00167                                      second_base_col, first_qual_col, second_qual_col,
00168                                      rownum_vec);
00169
00170       if ( (int)first_base_col.size() < Dmin*2 ) {//Need sufficient number of bases on columns
00171         //cerr<<"Size too small! i: "<<i<<", j: "<<j<<endl;
00172         //cerr<<"cand_vec[i]: "<<cand_vec[i]<<", cand_vec[j]: "<<cand_vec[j]<<endl;
00173         break;
00174       }
00175       char cand_base_1 = cand_bases[i];
00176       char cand_base_2 = cand_bases[j];
00177
00178       int num_cand_1(0), num_cand_2(0);
00179       double exp_err_first(0.0), exp_err_second(0.0);
00180       int num_corr(0);
00181       double expectation_val(0.0);
00182       look_for_corr(first_base_col, second_base_col, first_qual_col,
00183                     second_qual_col, cand_base_1, cand_base_2,
00184                     num_cand_1, num_cand_2, exp_err_first, exp_err_second,
00185                     num_corr, expectation_val);
00186
00187 //       double kvot;
00188 //       if ( num_cand_1 > num_cand_2 ) {
00189 //         kvot = double(num_cand_1)/double(num_cand_2);
00190 //       }
00191 //       else {
00192 //         kvot = double(num_cand_2)/double(num_cand_1);
00193 //       }
00194
00195       if ( num_cand_1 < Dmin ) {
00196         //cerr<<"Too few candidates! i: "<<i<<", j: "<<j<<endl;
00197         break;
00198       }
00199       int DNPfound(0);
00200       double tot_prob=0;
00201       double col_prob=0;
00202       double p1(-1), p2(-1), corr_prob(-1);
00203
00204       if ( num_corr >= Dmin ) { //NOTA BENE! Assumes Dmin = 3...
00205         //Computation of "the probability of observing any of the two columns by chance".
00206
00207         p1 = poisson_probability(exp_err_first, num_cand_1);
00208         p2 = poisson_probability(exp_err_second, num_cand_1);
00209         col_prob = 1.0 - (1.0 - p1) * (1.0 - p2);
00210
00211         assert( col_prob >= 0.0 && col_prob <= 1.0);//A bit shaky...
00212
00213         corr_prob = poisson_probability(expectation_val, num_corr);
00214         tot_prob = col_prob * corr_prob;
00215
00216
00217         if (tot_prob <= p_tot_max || num_corr > Dmin )DNPfound = 1;
00218
00219       }
00220
00221
00222       if ( DNPfound ) {
00223
00224         if ( !confirmed_DNP_pos[ cand_vec[i] ] ||
00225              !confirmed_DNP_pos[ cand_vec[j] ]) {
00226           num_pos++;
00227         }
00228
00229
00230         assert( cand_vec[i] < (int)confirmed_DNP_pos.size() );
00231         assert( cand_vec[j] < (int)confirmed_DNP_pos.size() );
00232
00233         confirmed_DNP_pos[ cand_vec[i] ] = 1;
00234         confirmed_DNP_pos[ cand_vec[j] ] = 1;
00235         set_DNPs( cand_vec[i], cand_vec[j],
00236                   cand_bases[i], cand_bases[j], rownum_vec,
00237                   i, j, cons_bases[i], cons_bases[j]);
00238       }
00239
00240     }
00241   }
00242 }

int DNPclass::find_DNP_base_candidates (  int &  a,
int &  t,
int &  c,
int &  g,
int &  gap,
char  seqbase,
int &  tot_seqbase,
int &  tot_others
)  [private]


void DNPclass::find_DNP_candidate_positions (   )  [private]


Definition at line 62 of file trapperDNP.cc.

References cand_bases, cand_vec, column_is_candidate(), MAl_addon::get_max_col(), MAl_addon::get_min_col(), m, and num_candidates.

Referenced by DNPclass().

00063      {{{
00064
00065 {
00066
00067
00068   int min = m->get_min_col();
00069   int max = m->get_max_col();
00070
00071
00072
00073   for( int i = min; i < max; i++ ) {
00074     if ( column_is_candidate(i) ) {
00075       cand_vec.push_back(i);
00076     }
00077     int proc = 100 * i / max;
00078 //     if ( proc % 5 == 0 )
00079 //       cerr<<proc<<" % checked"<<endl;
00080   }
00081   assert( cand_vec.size() == cand_bases.size() );
00082   num_candidates += (int)cand_vec.size();
00083 }

void DNPclass::look_for_corr (  vector< char > &  first_col,
vector< char > &  second_col,
vector< int > &  first_qual_col,
vector< int > &  second_qual_col,
char  cand_base_1,
char  cand_base_2,
int &  num_err_first,
int &  num_err_second,
double &  exp_err_first,
double &  exp_err_second,
int &  num_corr,
double &  expectation_val
)  [private]


Definition at line 279 of file trapperDNP.cc.

References quality2error, and qualmin.

Referenced by evaluate_DNP_candidate_positions().

00284      {{{
00285
00286 {
00287   //NOTA BENE! This function currently performs its analysis
00288   //with regard to the candidate base. That is, every base
00289   //present on the column is regarded as correct if it is of
00290   //another type than the candidate base.
00291
00292   //The two results are stored in expectation_val and returned
00293   //in col_prob, respectively.
00294
00295   num_err_first = num_err_second = 0;
00296   exp_err_first = exp_err_second = 0.0;
00297   expectation_val = 0;
00298   num_corr = 0;
00299
00300   //Pre-computation of necessary params
00301
00302   for( int i = 0; i < (int)first_col.size(); i++ ) {
00303     assert( first_qual_col[i] > -1 && first_qual_col[i] < 100 );
00304     assert( second_qual_col[i] > -1 && second_qual_col[i] < 100 );
00305
00306     int no_1_cand(0), no_2_cand(0);
00307
00308     exp_err_first += quality2error[ first_qual_col[i] ];
00309     exp_err_second += quality2error[ second_qual_col[i] ];
00310
00311
00312     if ( first_col[i] == cand_base_1 && first_qual_col[i] >= qualmin ) {
00313       num_err_first++;
00314       no_1_cand = 1;
00315     }
00316     if ( second_col[i] == cand_base_2 && second_qual_col[i] >= qualmin ) {
00317       num_err_second++;
00318       no_2_cand = 1;
00319     }
00320     if ( no_1_cand && no_2_cand )
00321       num_corr++;
00322   }
00323
00324
00325   //Computation of the expectation value for the number of coinciding deviations
00326
00327   for( int i = 0; i < (int)first_col.size(); i++ ) {
00328     double err1 = quality2error[ first_qual_col[i] ];
00329     double err2 = quality2error[ second_qual_col[i] ];
00330     double new_sum = exp_err_first - err1;
00331     double Exp1 = num_err_first * err1 / ( num_err_first * err1 + new_sum * (1.0 - err1) );
00332     new_sum = exp_err_second - err2;
00333     double Exp2 = num_err_second * err2 / ( num_err_second * err2 + new_sum * (1.0 - err2) );
00334
00335     expectation_val += Exp1 * Exp2;
00336   }
00337
00338 }

void DNPclass::pick_base_row_and_qual_columns (  int  firstDNPindex,
int  secondDNPindex,
vector< char > &  firstDNPvec,
vector< char > &  secondDNPvec,
vector< int > &  first_qual_vec,
vector< int > &  second_qual_vec,
vector< int > &  rownum_vec
)  [private]


Definition at line 424 of file trapperDNP.cc.

References base_trans, MAl_addon::get_entry(), MAl_addon::get_num_rows(), MAl_addon::get_qual(), MAl_addon::get_row_end(), MAl_addon::get_row_start(), and m.

Referenced by evaluate_DNP_candidate_positions().

00428      {{{
00429
00430 {
00431   firstDNPvec.erase( firstDNPvec.begin(), firstDNPvec.end() );
00432   secondDNPvec.erase( secondDNPvec.begin(), secondDNPvec.end() );
00433   first_qual_vec.erase( first_qual_vec.begin(), first_qual_vec.end() );
00434   second_qual_vec.erase( second_qual_vec.begin(), second_qual_vec.end() );
00435   rownum_vec.erase( rownum_vec.begin(), rownum_vec.end() );
00436
00437   for( int j = 0; j < m->get_num_rows(); j++ ) {
00438
00439     if ( firstDNPindex >= m->get_row_end(j) || firstDNPindex < m->get_row_start(j) )
00440       continue;
00441     if ( secondDNPindex >= m->get_row_end(j) || secondDNPindex < m->get_row_start(j) )
00442       continue;
00443
00444     //Both bases come from the same read
00445
00446     char baseOnPos1 = base_trans[ m->get_entry(j, firstDNPindex) ];
00447     char baseOnPos2 = base_trans[ m->get_entry(j, secondDNPindex) ];
00448
00449     //EK 030408
00450     if(baseOnPos1 == 'x' || baseOnPos2 == 'x')
00451       continue;
00452
00453     assert(baseOnPos1 == 'a' || baseOnPos1 == 't' || baseOnPos1 == 'g' ||
00454            baseOnPos1 == 'c' || baseOnPos1 == 'n' || baseOnPos1 == '-' ||
00455            baseOnPos1 == 'x' || baseOnPos1 == '*' );
00456     assert(baseOnPos2 == 'a' || baseOnPos2 == 't' || baseOnPos2 == 'g' ||
00457            baseOnPos2 == 'c' || baseOnPos2 == 'n' || baseOnPos2 == '-' ||
00458            baseOnPos2 == 'x' || baseOnPos2 == '*');
00459
00460     int qualOnPos1 = m->get_qual(j, firstDNPindex);
00461     int qualOnPos2 = m->get_qual(j, secondDNPindex);
00462
00463     firstDNPvec.push_back(baseOnPos1);
00464     secondDNPvec.push_back(baseOnPos2);
00465
00466     first_qual_vec.push_back(qualOnPos1);
00467     second_qual_vec.push_back(qualOnPos2);
00468
00469     assert( j < m->get_num_rows() );
00470
00471     rownum_vec.push_back( j );
00472   }
00473 }

double DNPclass::poisson_probability (  double  lambda,
int  obs
)  [private]


Definition at line 341 of file trapperDNP.cc.

Referenced by evaluate_DNP_candidate_positions().

00342      {{{
00343
00344 {
00345   //   if ( lambda < 0.0 ) {
00346   //     cerr<<"lambda: "<<lambda<<endl;
00347   //   }
00348   assert( lambda >= 0.0);
00349   assert( obs >= 0 );
00350   double M = lambda;
00351   int N_in = obs;
00352   int N = N_in - 1;
00353   int J       (0);
00354   double S = exp(-M);
00355   double res(0.0);
00356
00357   if(N < 0){
00358     return 1.0;
00359   }
00360
00361
00362   if(S==0){
00363     J = N;
00364     if(J > M){
00365       J = int(M);
00366     }
00367
00368     double F(0.0);
00369     for( int i = 1; i <= J; i++ ) {
00370       F += log((double)i);
00371     }
00372     double L = -M-F+J*log(M);
00373     L = exp(L);
00374     F=1;
00375
00376     double T(0.0);
00377
00378     for( int i = 1; i <= J; i++ ) {
00379       F *= (J+1-i)/M;
00380       T += F;
00381     }
00382
00383     if(J==N){
00384       T=(T+1)*L;
00385       res = 1.0 - T;
00386
00387     }
00388     else{
00389       F=1;
00390       for( int i = 1; i <= N-J; i++ ) {
00391         F *= M/(i+J);
00392         T=T+F;
00393       }
00394       T=(T+1)*L;
00395       res = (1.0 - T);
00396     }
00397
00398   }
00399   else{
00400
00401     double T=S;
00402     for( int i = 0; i <= N-1; i++ ) {
00403       S = S*M/(i+1);
00404       T += S;
00405     }
00406     res = (1.0 - T);
00407   }
00408
00409   if ( res < 0.0 ) {
00410     if ( -res < 0.0000000000001 )
00411       res = 0.0;
00412   }
00413   else if ( res > 1.0 ) {
00414     if ( res - 1.0 < 0.0000000000001 )
00415       res = 1.0;
00416   }
00417   assert( res <= 1.0 );
00418   assert( res >= 0.0 );
00419
00420   return res;
00421 }

void DNPclass::set_DNPs (  int  col1,
int  col2,
char  DNPbase1,
char  DNPbase2,
vector< int > &  rownum_vec,
int  ID1,
int  ID2,
char  cons1,
char  cons2
)  [private]


Definition at line 247 of file trapperDNP.cc.

References dnp_type(), MAl_addon::get_entry(), MAl_addon::get_qual(), MAl_addon::is_DNP(), m, num_found, qualmin, and MAl_addon::set_DNP().

Referenced by evaluate_DNP_candidate_positions().

00250    {{{
00251
00252 {
00253
00254   for( int i = 0; i < (int)rownum_vec.size(); i++ ) {
00255
00256     if ( m->get_entry( rownum_vec[i], col1 ) == DNPbase1 &&
00257          m->get_entry( rownum_vec[i], col2 ) == DNPbase2 &&
00258          m->get_qual(rownum_vec[i], col1) >= qualmin &&
00259          m->get_qual(rownum_vec[i], col2) >= qualmin) {
00260       //Set DNP
00261       if ( !m->is_DNP( rownum_vec[i] , col1 ) ) {
00262         num_found++;
00263       }
00264       if ( !m->is_DNP( rownum_vec[i] , col2 ) ) {
00265         num_found++;
00266       }
00267
00268
00269       m->set_DNP( rownum_vec[i] , col1, true, ID1, dnp_type(DNPbase1, cons1) );
00270       m->set_DNP( rownum_vec[i] , col2, true, ID2, dnp_type(DNPbase2, cons2));
00271
00272
00273     }
00274   }
00275 }

Member Data Documentation

map<char, char> DNPclass::base_trans [private]


Definition at line 24 of file trapperDNP.h.

Referenced by column_is_candidate(), DNPclass(), and pick_base_row_and_qual_columns().

vector<char> DNPclass::cand_bases [private]


Definition at line 33 of file trapperDNP.h.

Referenced by column_is_candidate(), evaluate_DNP_candidate_positions(), and find_DNP_candidate_positions().

vector<int> DNPclass::cand_vec [private]


Definition at line 32 of file trapperDNP.h.

Referenced by evaluate_DNP_candidate_positions(), and find_DNP_candidate_positions().

vector<int> DNPclass::confirmed_DNP_pos [private]


Definition at line 21 of file trapperDNP.h.

Referenced by evaluate_DNP_candidate_positions().

vector<char> DNPclass::cons_bases [private]


Definition at line 34 of file trapperDNP.h.

Referenced by column_is_candidate(), and evaluate_DNP_candidate_positions().

int DNPclass::Dmin [private]


Definition at line 29 of file trapperDNP.h.

Referenced by column_is_candidate(), and evaluate_DNP_candidate_positions().

MAl_addon* DNPclass::m [private]


Definition at line 17 of file trapperDNP.h.

Referenced by column_is_candidate(), evaluate_DNP_candidate_positions(), find_DNP_candidate_positions(), pick_base_row_and_qual_columns(), and set_DNPs().

int DNPclass::num_candidates [private]


Definition at line 26 of file trapperDNP.h.

Referenced by find_DNP_candidate_positions().

int DNPclass::num_found [private]


Definition at line 18 of file trapperDNP.h.

Referenced by DNPclass(), evaluate_DNP_candidate_positions(), and set_DNPs().

int DNPclass::num_pos [private]


Definition at line 19 of file trapperDNP.h.

Referenced by DNPclass(), and evaluate_DNP_candidate_positions().

double DNPclass::p_tot_max [private]


Definition at line 30 of file trapperDNP.h.

vector<double> DNPclass::quality2error [private]


Definition at line 22 of file trapperDNP.h.

Referenced by DNPclass(), and look_for_corr().

int DNPclass::qualmin [private]


Definition at line 28 of file trapperDNP.h.

Referenced by look_for_corr(), and set_DNPs().

The documentation for this class was generated from the following files:
Generated on Fri Mar 17 17:44:58 2006 for trapper by  doxygen 1.4.4
